Name: PP Flame Retardant Masterbatch
Brand: Decabromodiphenyl Ethane/Brominated Polystyrene/Brominated Epoxy Oligomer/Halogen&Halogen Free Flame Retardants
Availability: InStock
Rating: 5 (1 reviews)

Home/Flame Retardant Masterbat...

Description Review

Description

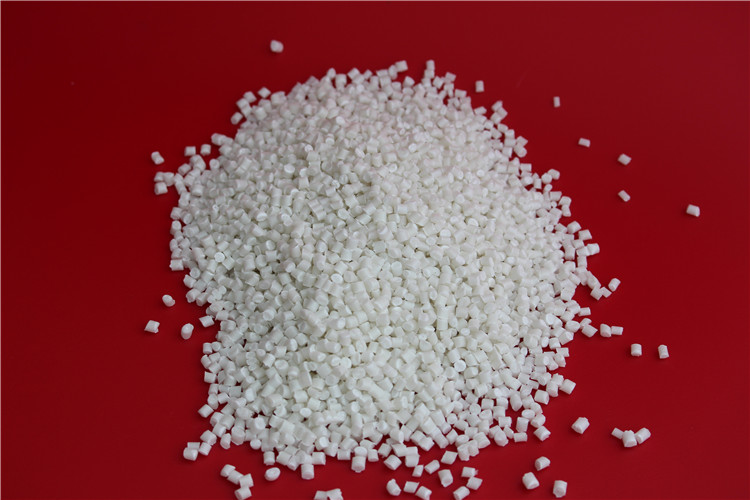

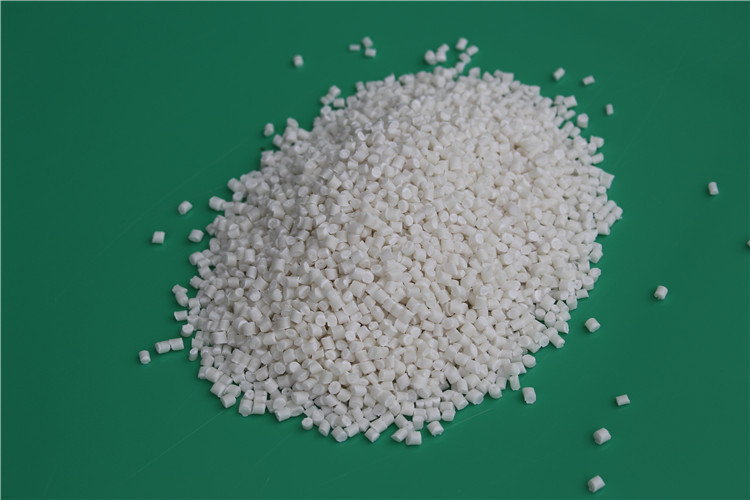

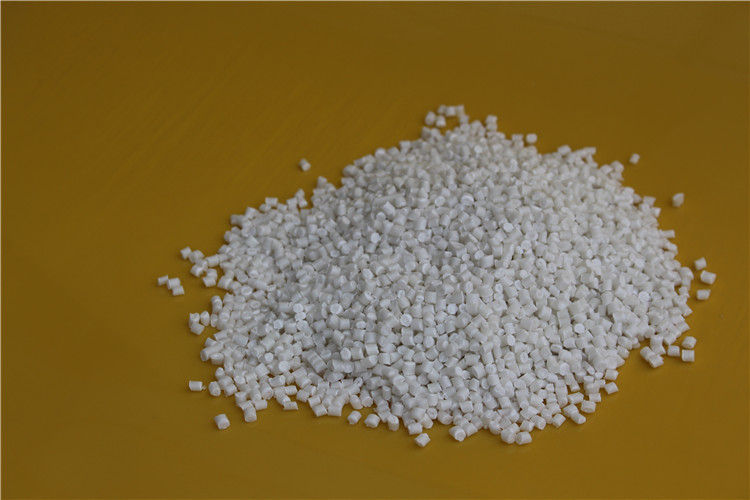

PP Flame Retardant Masterbatch (Ⅰ)

Introduction
CPP-3 & CPP-4 consist of environment friendly flame retardant system of phosphorus,nitrogen and bromine, while XPP-1 is bromine antimony flame retardant system, They all passed the evaluation of SGS, CTI etc certification authority and comply with ROHS requirement. Good compatibility with PP.

Indexes

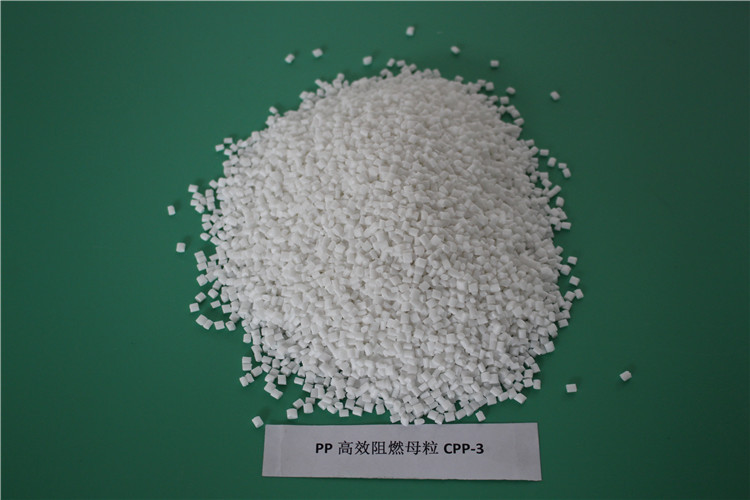

Name Index	CPP-3	CPP-4	XPP-1
Product Name	PP High Performance Flame Retardant MB	PP Low Bromine Flame Retardant MB	PP Filling Flame Retardant MB
Appearance	White granular	White granular	White granular
Content%	≥40	≥40	≥40
Bromine Content ppm	13000	3300	250000
Dosage%	4	4	8
Density g/cm³	1.05	1.10	1.26
Injection Temp ℃	≥240	≥240	≥220
Application	Corrugated pipe, hollow board, automobile interior plastic parts, decorative board, injection molded parts, transparent film, cast film etc.	Automotive interior plastic parts, refer to CPP-3	Filling rope, blister sheet, plate, injection molded parts etc.

Technical Data

Formula	UL94	Izod Notched Impact Strength(23℃)KJ/m²	Tensile Strength MPa	Elongation at Break %	Flexural Strength MPa	Flexural Modulus MPa
Raw Material	—	5.35	31	350	27.2	980
Homopolymerized PP+5%CPP-4	V2/3.2mm	4.1	31	39	27.7	954
Homopolymerized PP+4%CPP-3	V2/3.2mm	4	31	26	29.6	1045
Homopolymerized PP+8%XPP-1	V1/3.2mm	4.2	30	177	26.6	919

Product Features

Name	Product Features
CPP-3	Low odor, high bromine content, high performance.
CPP-4	Low density of finished products, low smoke and no mold corrosion, high smoothness, low halogen and high cost performance.
XPP-1	Used for flame retardant filling rope, can add any amount of calcium carbonate; used for sheet metal, high performance and good plastic properties. Disadvantage: not suitable for dark and black products

PP Flame Retardant Masterbatch (Ⅱ)

Introduction
TPP consists of environment friendly flame retardant system of bromine and antimony, WPP & WPP-GF are halogen-free flame retardant masterbatches with phosphorus and nitrogen as the flame retardant elements, passed the evaluation of SGS, CTI etc certification authority and comply with ROHS requirement. Good compatibility with PP.

Index

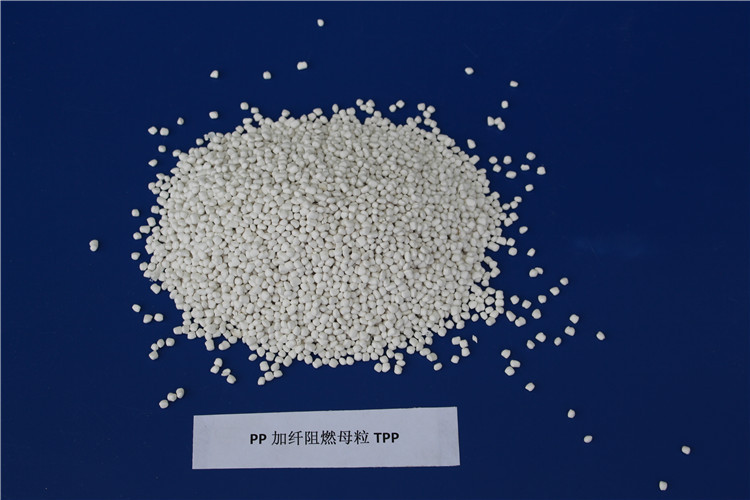

Name Index	TPP	WPP	WPP-GF
Product Name	PP Add Filber Flame Retardant MB	PP No Halogen Flame Retardant MB	PP No Halogen Flame Retardant MB
Appearance	White granular	White granular	White granular
Content%	≥88	≥50	≥70
Dosage%	28-30	50	30
Density g/cm³	2.10	1.20	1.25
Injection Temp ℃	≤250	≤200	≤210
Application	PP Injection and extrusion	PP Injection	PP Injection and extrusion

Technical Data

Formula	UL94	Specific Gravity	Izod Notched Impact Strength(23℃)KJ/m²	Tensile Strength MPa	Elongation at Break %	Flexural Strength MPa	Flexural Modulus MPa
Raw Material	—	0.9	5.35	31.3	350	27.2	980
PP+20%Fill+ 30%TPP	V0/3.2mm	1.31	6.2	24.8	66.7	41.6	2483
PP+50%WPP	V0/1.6mm	1.05	5.1	26.8	33.7	39.5	1900
Raw Material PPGF35%	—	1.16	7.5	28.8	20.1	39.6	2985
PP+30%WPP-GF	V0/1.6mm	1.21	5.0	21.5	11.9	38.3	3210

Product Features

Name	Product Features
TPP	Used with talcum powder, glass fiber, high performance, good dimensional stability, good heat resistance. Glow-wire test meets GWFI 750℃ and GWFI 850℃
WPP	No halogen, non-blooming, UL94V0, low density, high UV-resistance, glow-wire test meets GWFI 750℃ and GWFI 850℃
WPP-GF	No halogen, High temperature resistance, good stability, high UV-resistance, glow-wire test meets GWFI 750℃ and GWFI 850℃

Note:

CPP-3 and CPP-4, WPP and WPP-GF are not allowed to add calcium carbonate, calcium stearate and color masterbatches
CPP-3 and CPP-4 can add talcum powder, barium sulfate etc., but dosage should be increased.
All PP flame retardant products can not be used with coal chemical products.

Review

Send your message to us
